CityGal Central irrigation contr

CityGal - Central irrigation control system for modern municipal landscape and turf irrigation

CityGal a central control solution for water budgeting
CityGal a web based system controls and monitors municipal turf irrigation
CityGal continues the legacy of Galcon products that are famous for their simplicity, efficiency and reliability at reasonable prices.
CityGal combines state of the art communication and software components including cellular data communication and web based management server that allows full control of the irrigation from anywhere anytime.
CityGal allows flexible water quantities for different plant types by one click and also automatic change in irrigation according to weather

CityGal System

Management and inspection of remote control units all over the city
Management and execution of irrigation program using secured web server
Ability to set irrigation policy locally, regionally or centrally.
Four daily programs for each valve
Long term scheduling with ability to exclude special dates
RTU with ability to manage up to 450 tasks
Identification and alert of irrigation faults with notification to Email and mobile devices

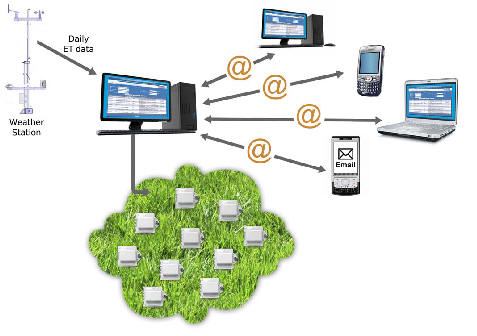

CityGal control center

Management of unlimited number of controllers in the field
Web based control center allowing access from any PC or PDA using SSL secured access
No software installation required
Dynamic Graphic User Interface (GUI) of all the irrigation controllers on a map or air-photograph
Simple and user friendly programming of irrigation schedule and duration/quantity
Irrigation scheduling by days of the week (two weeks plan), interval or odd even days
Ability to add and reduce water amount to different types of vegetation all over the city by one click or automatically according to weather change
Central rain delay
Water usage reports per valve and zone in any desired time period
Water amount planning and execution follow up
Alarms to Email and mobile devices
Events log

CityGal RTU

Controller with built in cellular communication to the control center
No need for solar panel or external power source
Internal battery operating the unit for up to 5 years
Low costs of GPRS (data) usage
Internal antenna inside the unit box
Compact unit IP64 enclosure fit for installation inside a valve box
Remote Integration of the unit - no need for field technician
Plug & Play
Valves operation independently or in sequence with 4 different start times for each valve
Irrigation by time or by quantity
8 outputs for DC valves per unit
Digital input for water meter reading (pulse)
Fertilizer pump operation
Alarm in event of opening the unit cover or the valve box door
Flow rate control (with alarm system)
Uncontrolled water alarm (with alarm system)
Future ability to work over municipal WiFi networks
