Enpro provides the
most advanced and reliable fertigation machines and on-site services for
your modern growing systems! |
|
|

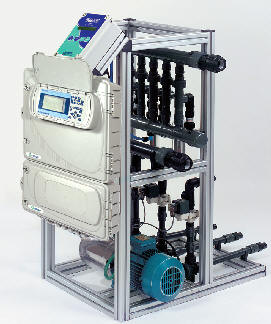

FertiJet
Fertigation Machine
The FertiJet is a direct injection by-pass fertigation machines. The
main tubing with it＊s Main Valve,
Water Meter, Filter etc. are not included in the FertiJet.
The Models:
1. FertiJet Standard:
Up to four 360 L/H Fertilizer pumps and one 160 L/H (for acid) can
be installed. The 160 L/H is the same 360 L/H venturi with a special
acid flow meter limited to 160 L/H.
2. FertiJet High Flow:
Up to four, 1250 L/H Fertilizer pumps and one (acid) 350 L/H Fertilizer
Pump. Capable of injecting fertilizer into a flow of up to 250 cubic
meters per hour at a rate of 5 liters per cubic meter.
3. FertiJet Double High Flow:
2 FertiJet High Flow machines connected and controlled together. Using
double fertilizer pumps of 1200 L/H it can have
up to four channels of 2500 L/H + one 1200 L/H for acid. It is capable
of fertilizing a flow rate of up to 500 cubic meters per hour at a rate
of 5 L/H.
• Main Line Pressure: Up to 4 bars. (Higher
pressure models are available via special order) |
| ﹛ |
|

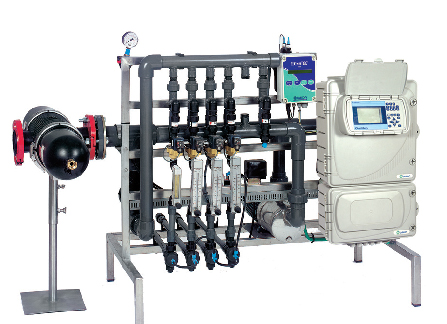

FertiGal
Fertigation Machine
The FertiGal is a direct injection in-line fertigation machine.
The Models:
1. Mini FertiGal: A compact up to 4 fertilizer pump 2§ machine.
It can deliver up to 25 cubic meters per hour.
2. FertiGal 1§ 每 up to 10 cubic meters per hour.
3. FertiGal 2§ 每 up to 25 cubic meters per hour.
4. FertiGal 3§ 每 up to 50 cubic meters per hour
5. FertiGal 4§ 每 up to 100 cubic meters per hour.
6. FertiGal 6§ 每 up to 200 cubic meters per hour.
• Pressure up to 4.5 Bars. (Higher pressure models are available via
special order)
• All of the models can be equipped with up to 8 Fertilizer pumps (350
L/H).
• Additional Components: (All of the components vary in size ac cording
to the machine model).
• Water Meter with an electric pulse connected to the controller.
• Main Pressure Reducing Valve: Installed at the inlet of the machine.
It can be regulated to maintain the desired pressure.
• Main Tubing: According to the size of the machine.
• Filter: Installed in the outlet of the machine. Serves as a secondary |
| ﹛ |
|

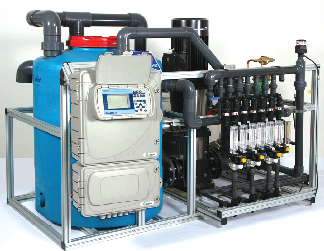

FertiMix
Fertigation
Machine
The FertiMix is a Machine that includes
The Models:
1. Fertimix 1§ - up to 9 Cubic meters per 100 liter tank
2. Fertimix 2§ - up to 25 cubic meters 250 liter tank
3. Fertimix 3§ 每 up to 35 cubic meters 500 liter tank
4. Fertimix 3§ High Flow 每 up to 60 cubic 1000 liter tank.
Inlet Pressure: Higher than 2.5 bars, up to 4.5 Bars.
All the models can be equipped with pumps (350 L/H).
Additional Components:
• Water Meter with an electric pulse controller.
• Hydraulic Inlet and Outlet valves.
• A Float to balance the water inlet outlet onto the field.
• A triple purpose Electric Pump supplying: suction, pressure for the
irrigation
• Water Temperature Sensor: to prevent boiling in the case of low flow
rate. (Installed in the large models). |
| ﹛ |
|
FertiDozer
Fertigation Machine
The FertiDozer is a non controlled fertigation machine. It consists of:
• The Fertilizer pumps are not equipped with the electric fertilizer
valve.
• Two Fertilizer Pumps: one of 1200 L/H and the other (for acid) of 160
L/H.
• The injection of fertilizer is constant according to the setting made
by the operator.
• Main Line Pressure: Up to 4 bars. (Higher pressure models are
available via special order.) |
| ﹛ |
|
Shahak
Fertigation Machine
The Shahak like the FertiGal, is a direct injection in-line fertigation
machine.
It differs from the other machines by its direct injection Electric
Fertilizer Pumps instead of the venturi pumps and a booster. The
electric pumps simply start and stop frequently according to the
controller commands.
The Models:
1. 1§ : up to 10 cubic meters per hour, 160 liters per hour,
electric fertilizer pumps.
2. 2§ : up to 25 cubic meters per hour, 300 liters per hour,
electric fertilizer pumps.
3. 3§ : up to 50 cubic meters per hour, 640 liters per hour,
electric fertilizer pumps.
• Pressure: up to 5 Bars.
• All the models can have up to 8 electric fertilizer pumps.
• Additional Components: (All of the components vary in size according
to the machine model).
• Water Meter with an electric pulse connected to the controller.
• Main Pressure Reducing Valve: Installed at the inlet of the machine.
It can be regulated to maintain the desired pressure.
• Main Tubing (Manifold): According to the size of the machine.
• Filter: Installed in the outlet of the machine. Serves as a secondary
filter as well as assisting in mixing the fertilizer with the water.
• The Shahak does not have a Booster Pump. |
