The Most Advanced Irrigation Controller for Home garden, Landscape, Greenhouse and Nursery, Agriculture

Enpro's Full Line Irrigation Controller - The most advanced and reliable irrigation controller in the market


EP9001 Irrigation Control Valve	EP9002 Irrigation Control Valve	EP7001 Irrigation Controller	EP6000 Irrigation Controller

EP6100 Irrigation Controller	EN8000 Irrigation Controller	EN8100-GQ Irrigation Controller	EN80024 Irrigation Controller

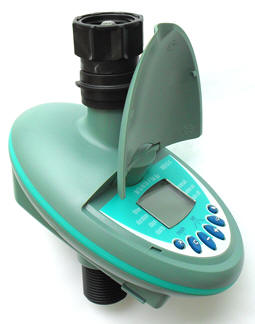

EP9001 Irrigation Control Valve - Battery powered 3/4" hose end control valve integrated with timer!

3/4" Hose end battery operated timer with female hose thread inlet and male hose thread outlet, connects to a faucet or hose end

Features:

Two selectors and one button to program.
Watering duration from length of 2, 5, 10, 15, 30 or 45 minutes to a length of 1, 3, 5 or 9 hours.
Hourly or cyclical program from every 3, 6 or 12 hours to every 1, 2, 3, 4, 7 or 14 days.
Up to eight start times a day can be used with cyclical button dial on every 3 hours.
Weather resistant.
Manual irrigation cycle via the controller.
Automatic and manual operation* 3 years warranty.

Specifications:

Operating Pressure: 10 to 80 PSI* 3/4" FHT X 3/4" MHT* Maximum flow rate: .1-5.2 GPM:
Temperature range: 38 to 130 degrees:
Power source: one 9-volt alkaline batteries (not included)):
Battery life: up to one year.

EP9002 Programmable Irrigation Control Valve - Battery powered 3/4" hose end control valve integrated with timer!

3/4" Hose end battery operated timer with female hose thread inlet and male hose thread outlet, connects to a faucet or hose end.

Features:

Six buttons with large integrated liquid crystal display* Easy to read AM/PM clock* Watering duration from one minute to eleven hours and 59 minutes in 1 minute increment.
7 days schedule calendar.
Four start times per day.
Weather resistant.
Manual irrigation cycle via the controller.
Irrigation suspension override (rain mode):
Low battery indictor* 3 years warranty

Specifications:

Operating Pressure: 10 to 80 PSI* 3/4" FHT X 3/4" MHT* Maximum flow rate: .1-5.2 GPM:
Temperature range: 38 to 130 degrees* Power source: one 9-volt alkaline batteries (not included)):
Battery life: up to one year:
low battery indicator

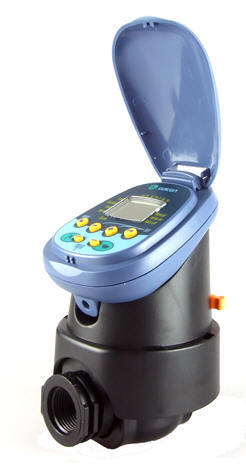

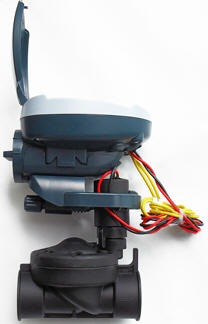

EP7001 Series Single Station Programmable Irrigation Controller - with in-line valve integrated!

Single Station battery operated controller with 3/4" NPT or BSP in-line valve.

Features:

Six buttons with large integrated liquid crystal display* Easy to read AM/PM clock* Watering duration from one minute to eleven hours and 59 minutes in 1 minute increment:
7 days schedule calendar:
Four start times per day on weekly schedule* Emergency backup program of 5 minutes every 24 hours if no buttons are pressed after battery installation:
Weather resistant:
Manual irrigation cycle via the controller or valve:
Irrigation suspension override (rain mode):
Low battery indictor* Choice of hose thread to pipe thread fitting included:
Controller clock can be detached 30" via coiled cable for easy program* 3 years warranty

Specifications:

Operating Pressure: 10 to 120 PSI* Maximum flow rate: 1-28 GPM:
Temperature range: 38 to 130 degree F (3-54 degree C)* Power source: one 9-volt alkaline batteries (not included)):
Battery life: up to one year:
Low battery indicator

EP6000 Series Irrigation Controller - The Simple Approach to a Larger Home Garden

Designed for larger home gardens, greenhouse and nursery, this user-friendly, battery operated 1-6 station automatic controller is ideal for more than one garden zone. Battery operated smart controllers for automatic operation of domestic irrigation systems. Perfect for lawns, drip and sprinkler systems, planters, roof gardens, etc.

Features:

Completely waterproof and weather resistant
Easy installation and operation
Weekly and cyclical programming
Up to 4 start times a day per station
Independent station programming
Irrigation duration from 1 minute to 12 hours
Operated by two 9V Alkaline Batteries
Operate ¾"-2" hydraulic valves

Specifications

Temperature Range: 38-130°F (3-54°C)
Power Source: 9-Volt DC (1, 9-Volt Alkaline Battery) Not Included
Battery Life: Up to 1 Year.

EP6100 Series Irrigation Controller - the new professional model in the market!

With contemporary design for residential and light commercial use, the 6100 series battery operated controllers offer a wide range of features that include advanced, 2-wire solenoid, smaller size profile, one 9-volt battery and a host of programming features that are easy to use.

Features:

Operates up to four stations and master valve (four station)
4 button keypad with an integrated large liquid crystal display (LCD)
Operates drip or sprinkler systems
Easy to read AM/PM clock
Can operate two valves simultaneously (four station)
Digital icon indicates station in operation (four station)
Automatic, semi-automatic and manual operation
Programming shut-off override
Independent programming for each valve (four station)
Irrigation suspension override (rain mode)
Rain sensor connections
Master valve wires included with the four station model
Color coded wires for easy verification
Withstands harsh climatic conditions (completely sealed and waterproof)
Can be mounted directly on most brand name valves or to the wall inside an irrigation box using one of six available adapters
Powered by one 9-volt alkaline battery featuring low power consumption
Program stored for up to 20 seconds during battery change
Compatible with a two-wire S-305 latching solenoid
Single station includes the solenoid

Programming Features:

Watering durations in 1 minute increments from 1 minute to 12 hours
Four start times per day
7 day programming schedule or 1-30 day intervals
Water budget from 5-95% in 5% increments
Rain delay up to 30 days
Waiting mode for the third valve in operation (four station)
Digital display blinking low battery indicator

Specifications

Temperature Range: 38-130°F (3-54°C)
Power Source: 9-Volt DC (1, 9-Volt Alkaline Battery) Not Included
Battery Life: Up to 1 Year

EN8000 Series Four and Six Station Irrigation and Propagation Controllers

Using sleek contemporary design, the EN8000 indoor mounted controller offers a true programming flexibility for each valve. The controller is simple to program and allow for each valve to be programmed independently of the others, from 1 minute to 12 hours in one minute increments.

Features:

Four buttons with an integrated liquid crystal display (LCD)
Independent program for each valve
Easy to read AM/PM clock
Watering Duration: from 1 minute to 11 hours and 59 minutes in 1 minute increments
7 day programming schedule or intervals from 1 to 30 days
Four start times per day on weekly schedule
Automatic short detector isolates the faulty valve and continues the irrigation cycle
Start time stacking prevents hydraulic overload
Master valve remote pump start circuit
Default program: after prolonged power interruption each station will operate for 10 minutes
Can be programmed under backup battery power without AC power connection
Water budget from 95% to +95% in 5% increments
"Rain Off" mode
Rain delay up to 30 days with auto restart
Three modes: automatic, semi-automatic and manua
Irrigation suspension override (rain mode)
Internal manual bleed
Can operate two valves at the same time
Waiting mode for third and fourth valves
Manual irrigation cycle via the controller
Battery backup retain program memory during a power outage

Specifications:

Input required: 220VAC or 110 VAC
Program backup: 9-volt battery (not included)
Including a terminal for sensor connection

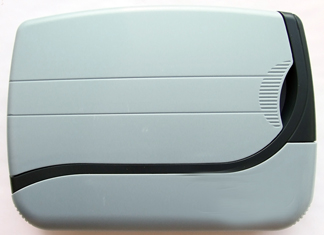

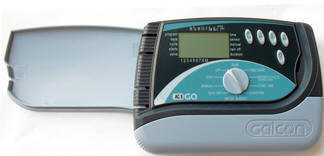

EN8100-GQ Series Irrigation Controller - the ultimate user-friendly product priced at outstanding values

The new four, six and eight station AC controllers are the ultimate user-friendly controllers for residential and light commercial applications. Easy to install and program, the controller provides the user with a wide range of irrigation programs and features that meet today's irrigation needs.

The controller illustration shows the front with the programming buttons, dials and the terminals.

Dial selector: used to select the desired programming mode includes clock setting mode
Switch button: move throughout the various display options to be used
Data increment button decreased: lowers the value of the selected parameter (example, hours selected are changed from 06:00 to 05:00)
Data increment button increased: raises the value of the selected parameter (example, hours selected are changed from 06:00 to 07:00)
Arrow button: used to select the parameter to be changed (hour, minute, etc.) only a blinking parameter can be changed
Program button: moves between programs A, B, C and X in repeating order
AC terminal: use to connect the transformer
Terminal: to connect the valve stations and rain sensor

Controller Features:

Three (3) programs A B C to select
Watering durations from 1 minute to up to 4 hours in 1-minute increments
Three (3) programs with four (4) start times per program with delay options in weekly mode and one start time per day in cyclical mode
Auxiliary X program in a weekly mode used for lights and ponds through the use of a relay
Custom programming with 7-day calendar or intervals of 1-31 days in odd/even or every day rotation
Operate four (4), six (6) or eight (8) stations with master valve or pump start
Five (5) buttons with a large dial and large integrated liquid crystal display (LCD) for easy view and programming
Off mode option on the dial allows the system to be shut off for an unlimited time
Includes testing feature of valve or zone, making sure that the zone is operating correctly
Dedicated sensor terminal allows operation with rain, freeze or moisture sensors
One 9-volt backup battery with battery icon alert if battery is low and needs to be replaced
Input, 220 VAC 50 Hz (110 VAC 60Hz available on request).

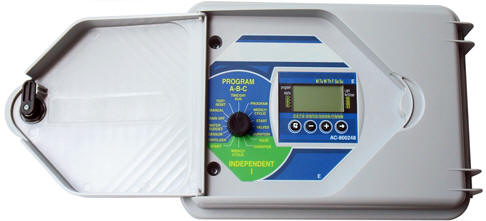

EN80024 Series Irrigation Controller - A modular product which can be expanded to 24 stations!

The ultimate modular irrigation controller, EN800024 is an expanded 4-valve "Plug and Play" solution that can accommodate up to 24 stations. It can incorporate fertigation and lighting, and is vandal proof.

This AC controller, the only one of its kind offers the modern irrigator the choice of two methods of operation from the same controller. The first option, allows three programs that can be set either according to days of the week or to a cycle, and permits the operation up to 24 valves.

The second option is the ability to program the controller to operate up to 24 valves, each with an independent program. These two options are applicable simultaneously on the same controller

3 PROGRAMS (A B C) WEEKLY OR CYCLIC

Main Features:

• Each program can operate from 1 valve up to 24 valves.
• Single valve independent program
• Up to 24 programs, Independent program per one valve - Option.

• 8,12,16,20 or 24 stations
• Weekly program - selected days of the week.
• Start times: Four starts per each daily program.
• Watering time range: one minute up to 9 hours.
• Cyclic program - 1 day up to 30 days cycle.
• Automatic, semi-automatic and manual irrigation.
• Built in self test of all valves upon user request.
• Programmable "Rain Off" period up to 240 days.
• Master Valve/Pump function.
• Programmable Fertilization Valve.
• Programmable Lighting Control.
• Large and clear Liquid Crystal Display (LCD).
• Built in 230 VAC / 115 VAC transformer.
• One-step-erase function of all previous programs.
• One housing for 8 stations up to 24 stations

• Friendly programming using a 16 position selector switch.
• "Four Valve Module" Allows for expanded capability up to 24 stations.
• Expanded capability by the user in the field.
• Self diagnostic circuit breaker identifies and overrides an electrical malfunction of a valve.
• Two stage primary and secondary surge protection.
• The 9V battery provides enough power to allow programming of the controller.
• The controller has a permanent memory for the program and will store the programs for 8 years. The battery will maintain the clock during power failure.
• Water budget for each program (100 > 10%).
• Rain sensor function.
• STACKING PROGRAM: If several watering cycles overlap in the same program, the controller will automatically make the start time slip until the former cycle is completed.
• Input, 220 VAC 50 Hz (110 VAC 60Hz available on request).
• Max output per station: 24 VAC 0, 2 Amp.
• Max. total controller output (including master valve): 24 VAC - 0.83 Amp.
